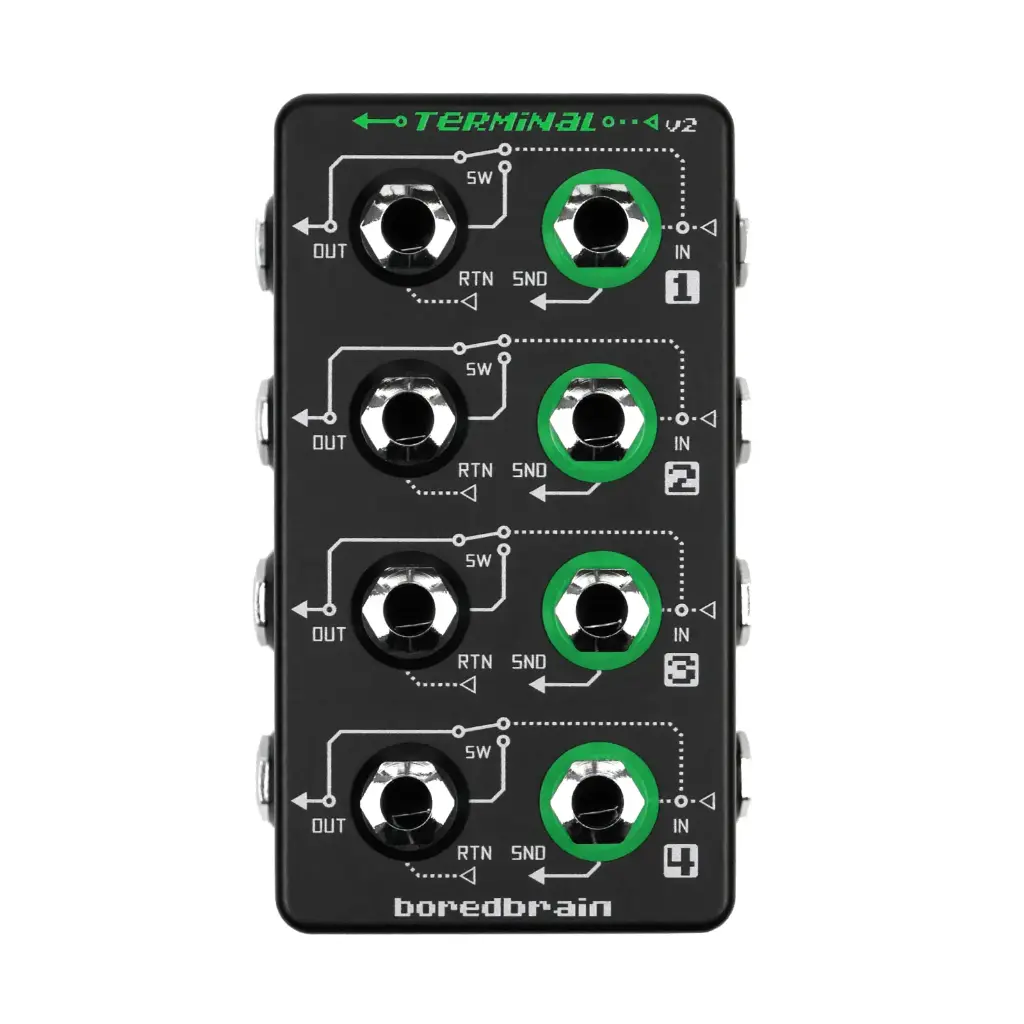

Terminal v2
HALF-NORMAL PATCHBAY HUB
- Four independent channels with 1/4-inch in-out and send-return
- Half-normal configuration for copying and replacing signals

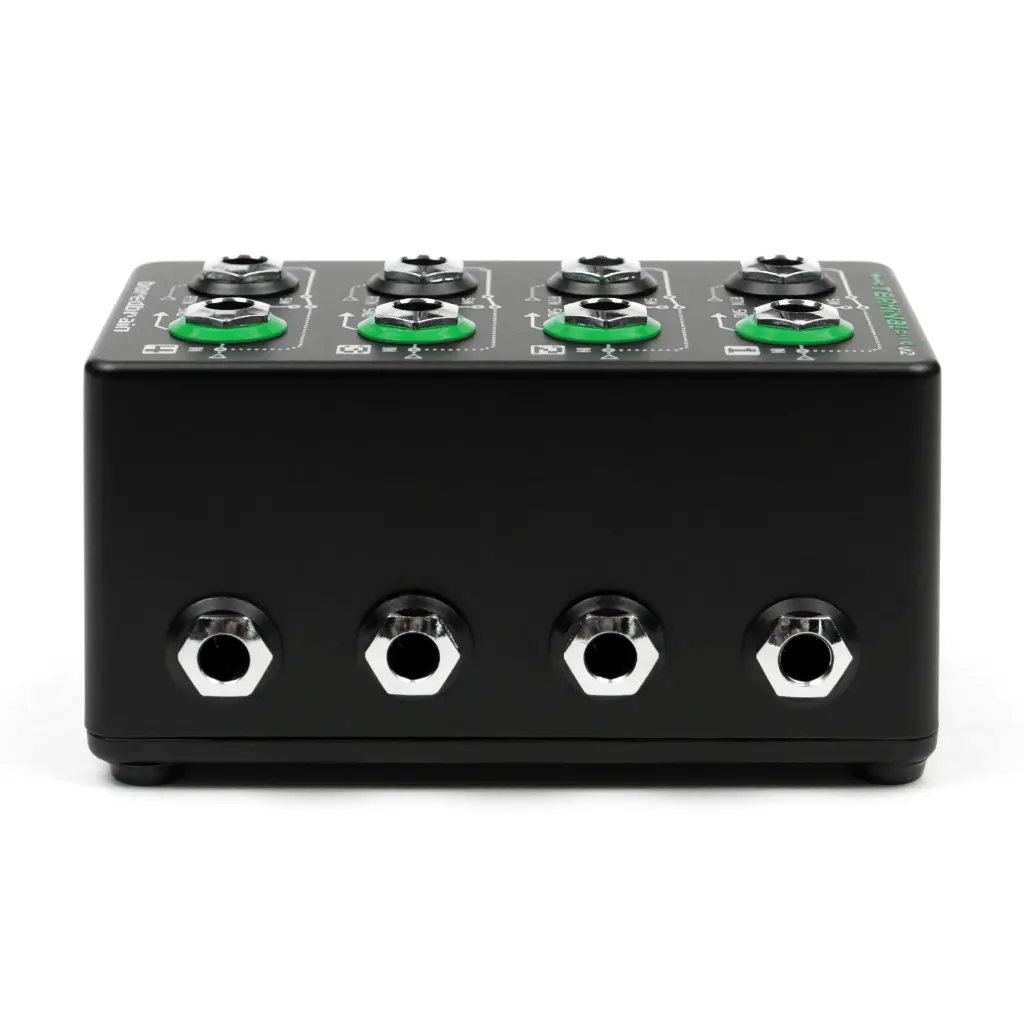

- Compact design with top-mounted patch points
- TRS connections support stereo or mono applications
Documents
Not completely normal
Terminal adds routing flexibility to signal chains of guitar pedal effects, electronic instruments and other audio devices. The half-normal patchbay is designed to easily copy signals, insert effects into primary signal paths, and re-route signals to alternate destinations.

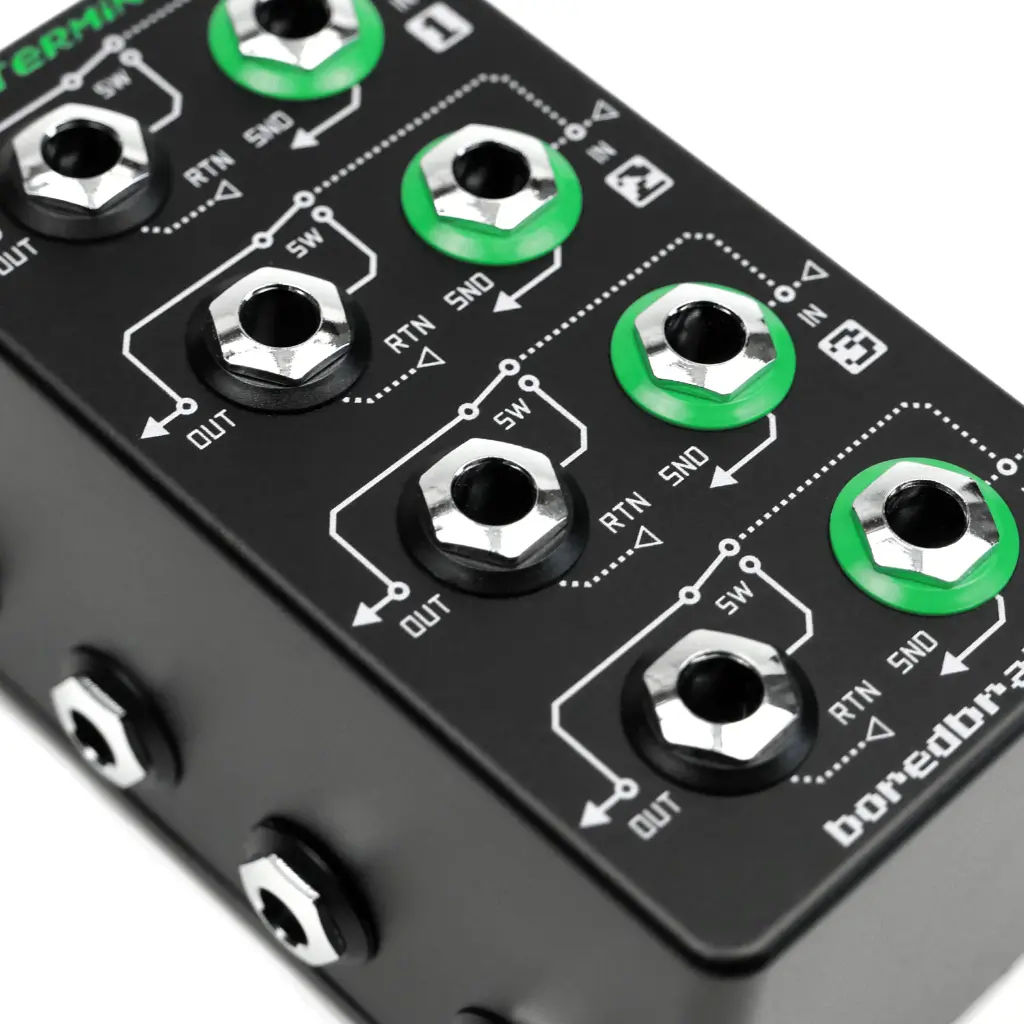

Are you playing with your cables more than your pedals? Terminal adds new routing possibilities to a more permanent setup. Its half-normalled configuration, which is also used in recording studio patch bays, allows an audio signal to pass “normally” and to be copied from the Green SND jack without interruption. However, the signal can also be cut off or replaced by patching into the RTN jack. It’s easy to insert effects and re-route instruments without pulling your rig apart.

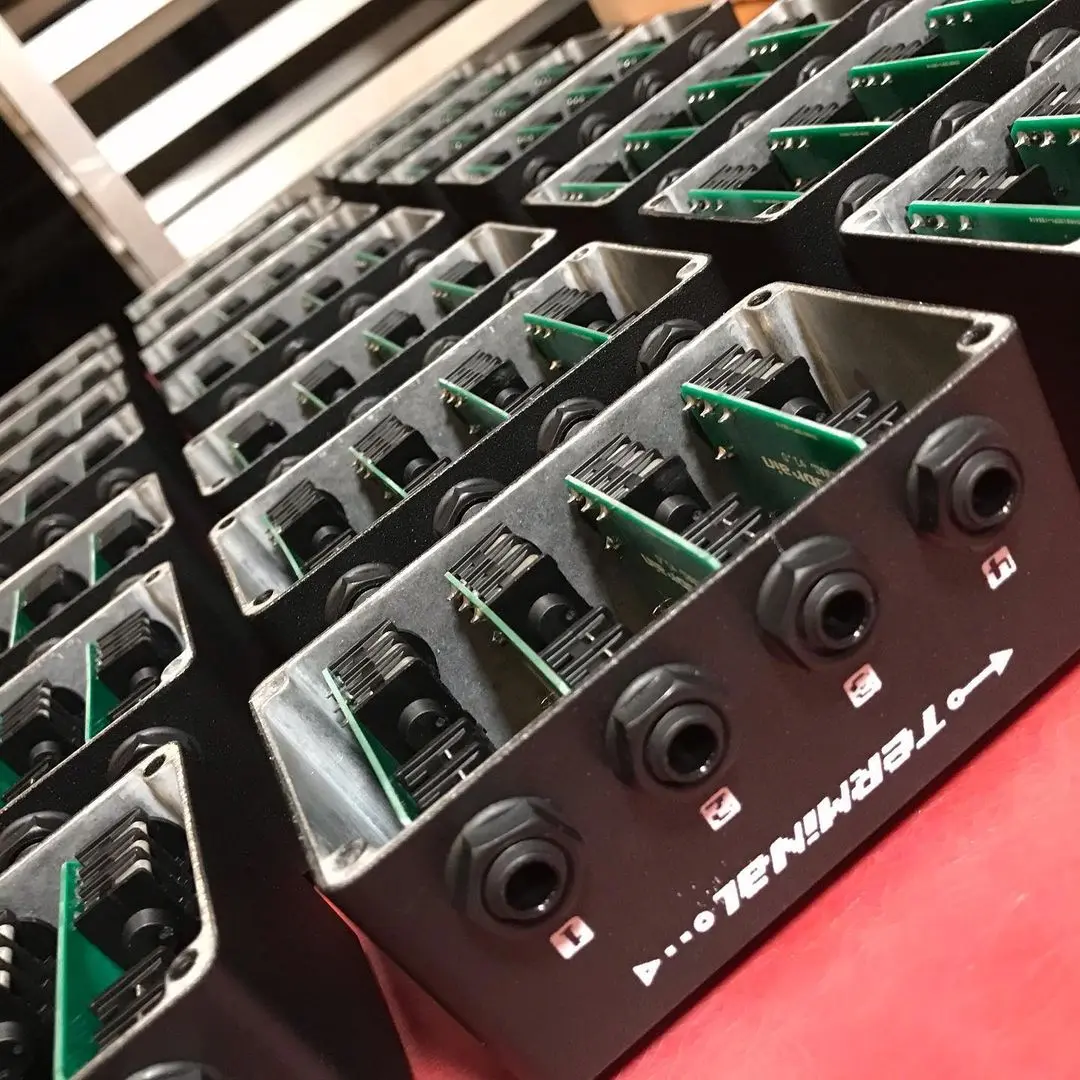

This simple but very useful design was originally a custom project for musician Tycho, who is using Terminal in his studio and live rigs to quickly patch between sections of pedal and instrument chains. Community interest in the product led Boredbrain to produce Terminal in limited batches, and then due to its popularity, it has now become a mainstay.
Stereo pedals lacking TRS jacks may require Y-splitter adapters (insert cables).

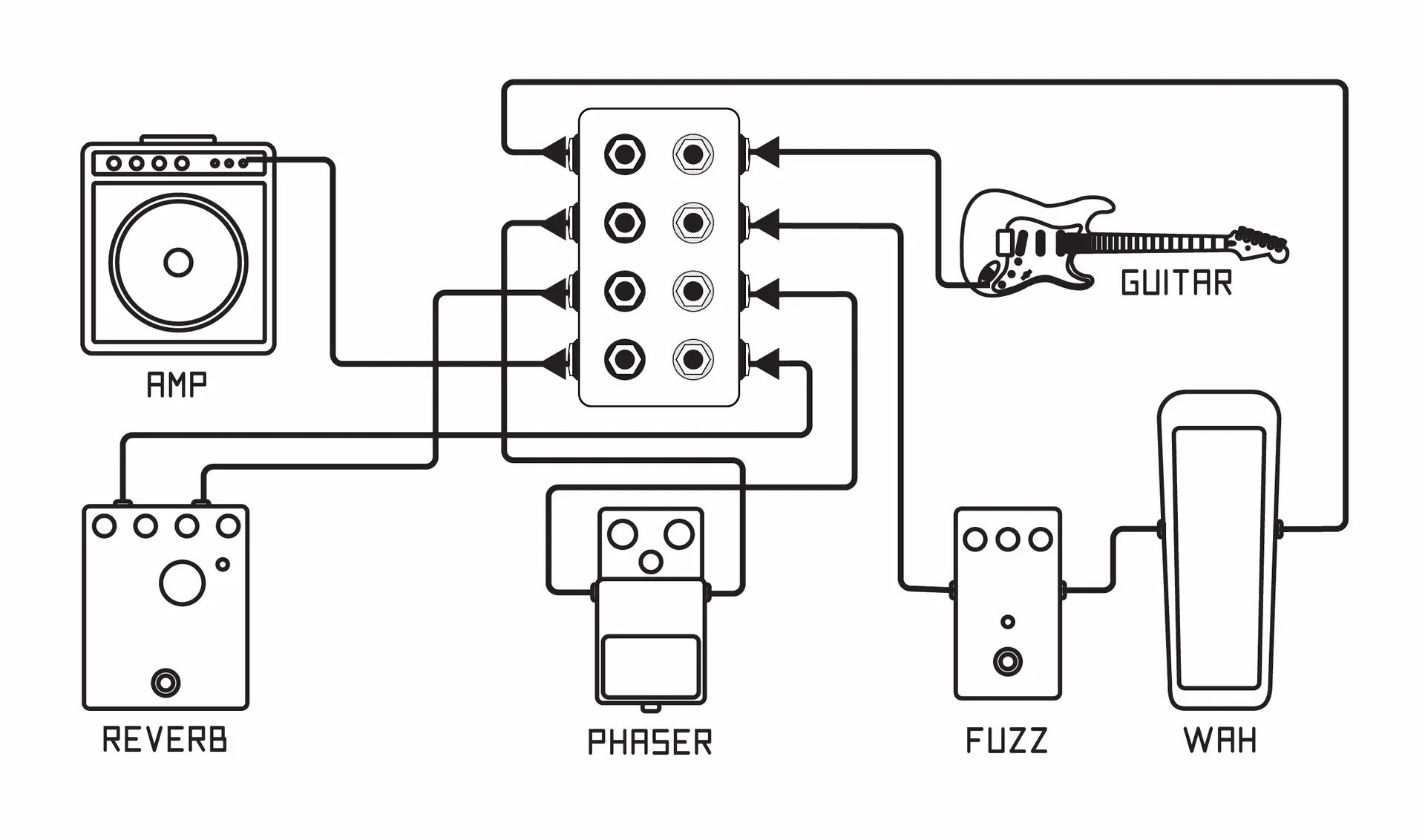

Pedalboard Access Points
Each Terminal channel is placed at specific points in the signal chain. New effects can then be inserted at these points, or entire sections can be bypassed using a single cable.

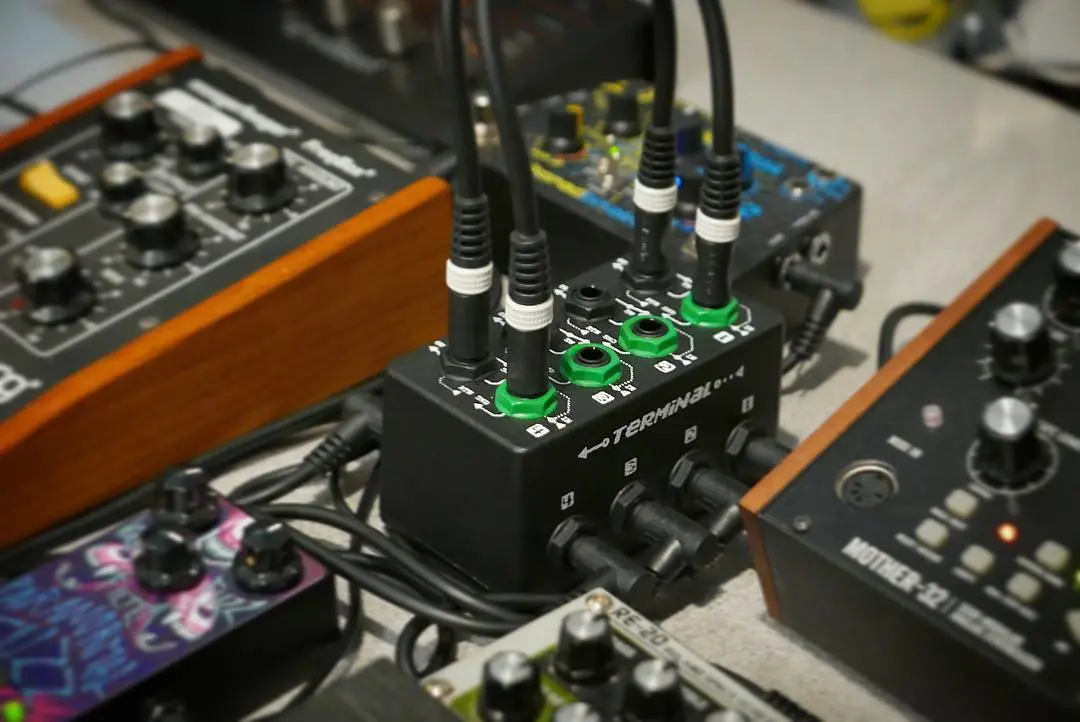

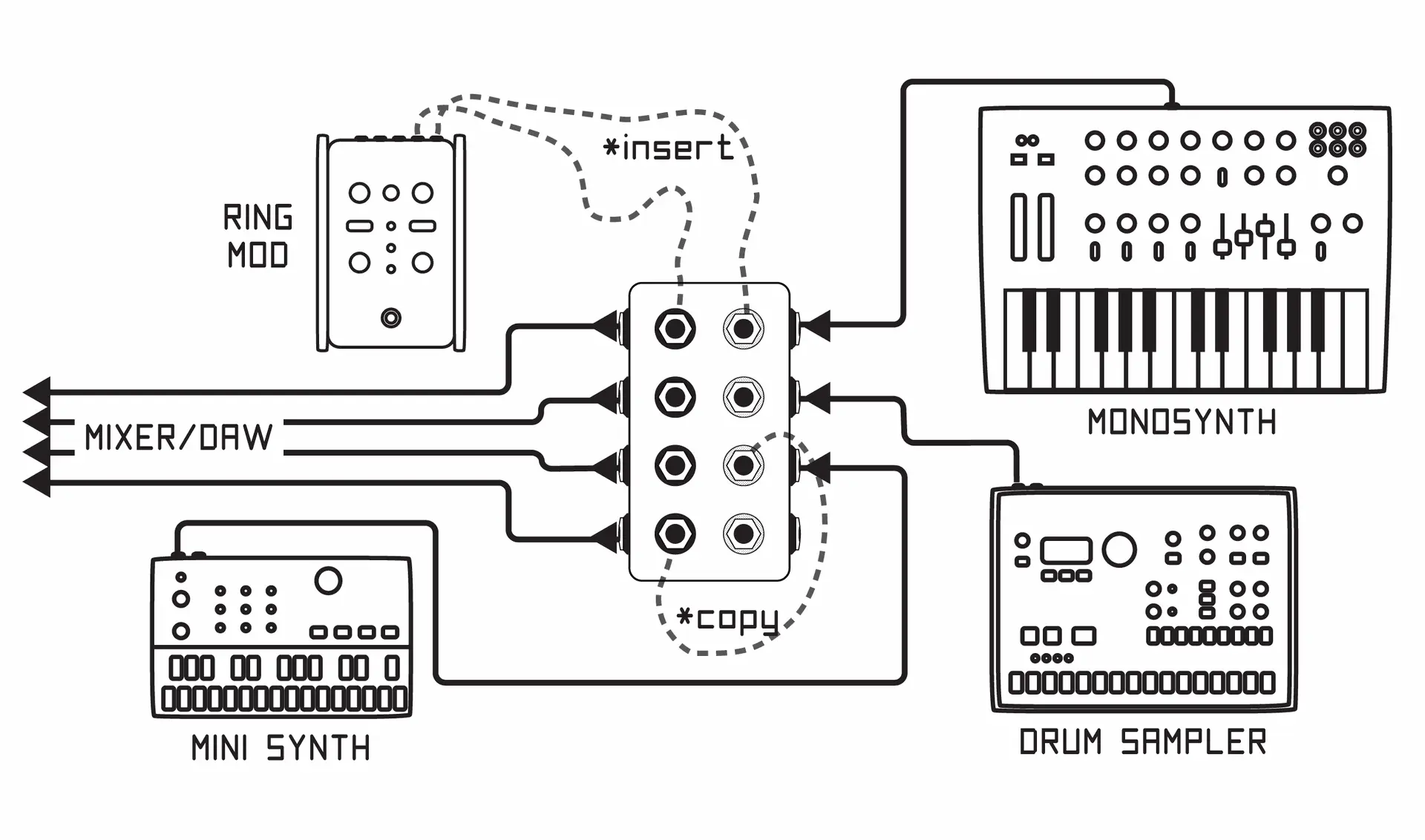

Instruments Patch Hub
Each Terminal channel is a dedicated patch point for an instrument signal on its way to a mixer or DAW. Effects can be inserted into the signal easily, or it can be copied to another channel.
Pedalboard Access Points
Each Terminal channel is placed at specific points in the signal chain. New effects can then be inserted at these points, or entire sections can be bypassed using a single cable.
Instruments Patch Hub
Each Terminal channel is a dedicated patch point for an instrument signal on its way to a mixer or DAW. Effects can be inserted into the signal easily, or it can be copied to another channel.

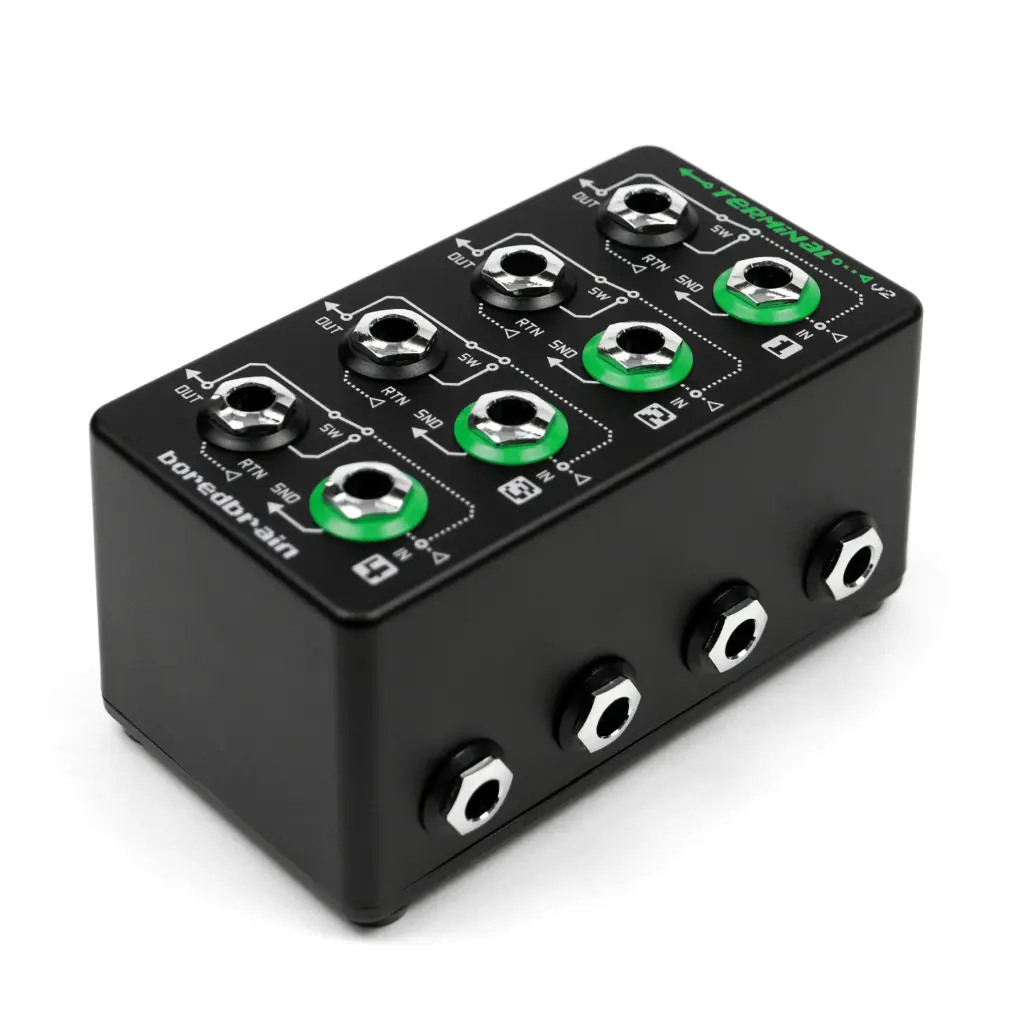

Version 2 has been upgraded with new high-quality 1/4-inch
jacks, premium finish with UV printed graphics, and is completely
lead-free.
SPECIFICATIONS
- 16 x 1/4-inch TRS jacks
- Power: None (passive)
- Dimensions: 4.5 in x 2.75 in x 2.5 in
- Weight: 10.5 oz (300 g)
